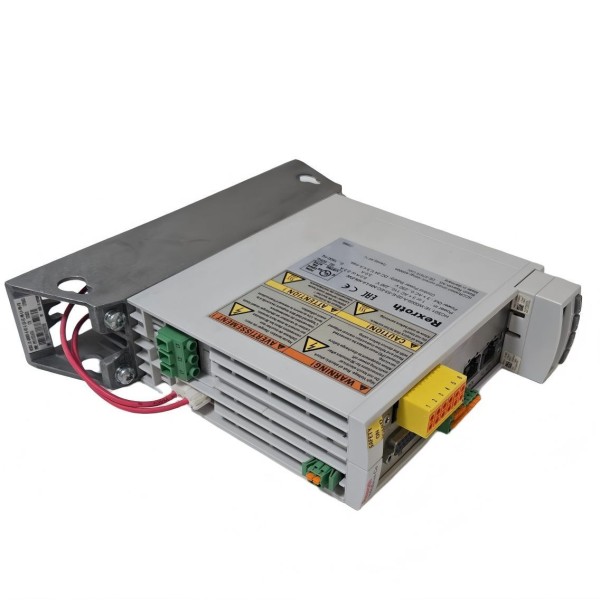

Rexroth R911326038 HCS01.1E-W0005-A-03-B-ET-EC-NN-NN-NN-FW

The REXROTH R911326038 HCS01.1E-W0005-A-03-B-ET-EC-NN-NN-NN-FW is an IndraDrive Cs HCS01 compact converter designed for precise single-axis servo control in industrial automation systems. It is used as a compact drive controller for applications that require accurate motor regulation, reliable motion response, and efficient cabinet integration. The complete order number R911326038 corresponds to the full type code HCS01.1E-W0005-A-03-B-ET-EC-NN-NN-NN-FW, and public industrial automation listings identify this unit as an IndraDrive compact converter under the HCS servo drive category.

This model is part of the HCS01.1E compact converter platform. The HCS01 series is commonly selected for machine axes where the available installation space is limited but the application still requires high-quality servo drive performance. The drive integrates power electronics, control functionality, motor feedback processing, and communication capability into a compact package. For OEM machine builders, this helps simplify electrical cabinet design and reduce the number of separate components required for a single controlled axis.

The type code W0005 indicates the 5 A class within the HCS01 range. This makes the unit suitable for smaller servo axes, auxiliary positioning units, feeder systems, indexing modules, light handling equipment, and compact automation mechanisms. The HCS01 compact converter family is described by third-party technical sources as covering the lower kilowatt range and combining power and control units in one device, with Ethernet-based communication, a multi-encoder interface, and integrated safety-related technology depending on the final configuration.

In practical industrial use, the R911326038 HCS01.1E-W0005-A-03-B-ET-EC-NN-NN-NN-FW receives command signals from a machine controller, processes encoder feedback from the motor or axis, and generates controlled power output for the servo motor. This allows the axis to perform controlled speed regulation, torque response, positioning sequences, electronic gearing, homing routines, and synchronized motion functions when the complete automation system is correctly engineered and commissioned.

A key advantage of this model is its compact construction. Compared with larger modular drive systems, an HCS01 compact converter can be easier to install in smaller control cabinets or machine-integrated enclosures. It is especially useful for equipment where only one or a few servo axes are required and where a large multi-axis drive cabinet would be unnecessary. Typical applications include packaging machines, labeling equipment, pick-and-place units, small conveyors, laboratory automation devices, electronic assembly machines, inspection stations, and light-duty production machinery.

The configuration string B-ET-EC-NN-NN-NN-FW is important for identification. In the HCS01 platform, each code section can represent control section type, communication interface, encoder interface, safety option, additional interface options, and firmware handling. This means that the complete type code should always be checked before replacement. A unit with the same HCS01.1E-W0005 power class may still differ electrically or functionally if the suffix options are different. For spare parts procurement, the full order number R911326038 and full model code should be used together to reduce mismatch risk.

The HCS01.1E-W0005-A-03-B-ET-EC-NN-NN-NN-FW is designed for controlled servo operation rather than general-purpose motor switching. It is normally used with a compatible servo motor, motor feedback cable, power cable, controller, safety circuit, and machine-side parameter set. During commissioning, engineers must confirm motor type, feedback configuration, communication protocol, safety wiring, braking requirements, and firmware compatibility. Incorrect parameter loading or mismatched firmware can prevent normal operation or trigger drive faults.

From a maintenance perspective, this model is valuable because the HCS01 platform is widely used in automated production equipment. A replacement drive can reduce downtime when the original unit has failed due to power-stage damage, control electronics failure, communication faults, DC bus problems, or environmental exposure. However, replacement should not be treated as a simple mechanical swap. The parameter file, firmware level, motor data, encoder configuration, and safety-related settings should be backed up from the original equipment whenever possible. If the original unit is completely damaged, the machine builder’s documentation or controller backup may be required.

The unit’s compact format also makes thermal management important. Although the HCS01 drive is small, it still contains power electronics and generates heat during operation. It should be mounted according to the required clearance rules, cabinet ventilation requirements, and grounding instructions. Overcrowded installation, poor airflow, excessive ambient temperature, or contaminated cabinet environments can shorten service life. In industrial environments with dust, oil mist, vibration, or high electrical noise, proper enclosure design and cable shielding are necessary.

The HCS01 platform also supports efficient machine integration because it combines drive power, feedback processing, and communication capability in one unit. This is useful for modular machines where each station may require its own controlled motion axis. In packaging or assembly equipment, for example, a compact drive of this size can control a small feed axis, pusher, rotary table, cutter feed, label head, or positioning mechanism. The result is a smaller control layout while still maintaining servo-level motion accuracy.

For procurement, the most important rule is to preserve the full code. The correct item should be requested as:

REXROTH R911326038 HCS01.1E-W0005-A-03-B-ET-EC-NN-NN-NN-FW Compact Converter

Using only “HCS01.1E-W0005” is not sufficient because other variants may have different safety options, communication boards, encoder interfaces, or firmware arrangements. Public listings show that even very similar HCS01.1E-W0005 units can have different suffixes such as L3, L4, PB, EC, or other option combinations. These differences can affect whether the drive can communicate with the existing controller or operate the connected servo motor without additional changes.

In summary, the REXROTH R911326038 HCS01.1E-W0005-A-03-B-ET-EC-NN-NN-NN-FW is a compact IndraDrive Cs servo converter for precise single-axis automation. It is suitable for small and medium motion-control tasks where cabinet space, reliable feedback control, and networked drive integration are important. This model is best used as a correctly matched replacement or as part of a properly engineered Rexroth servo drive system.
